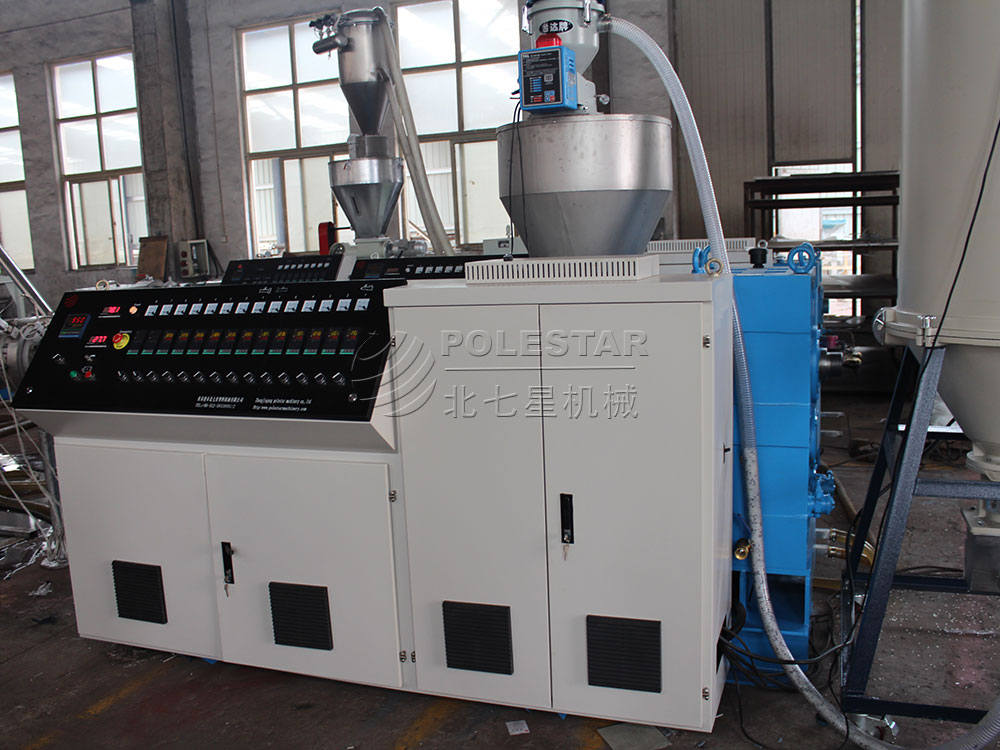

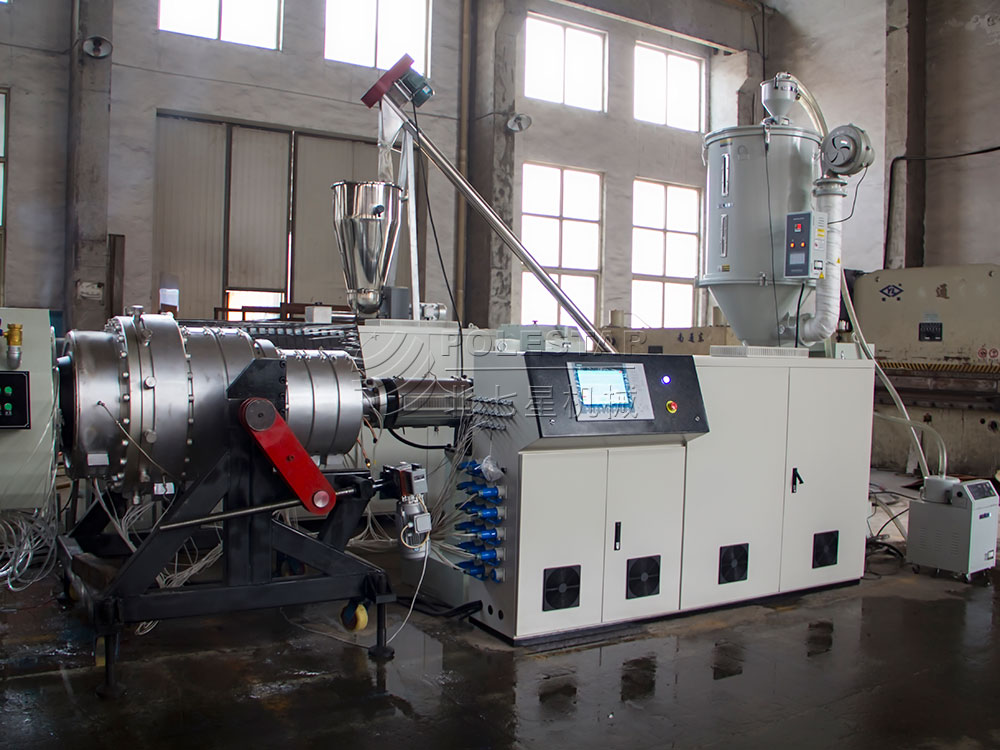

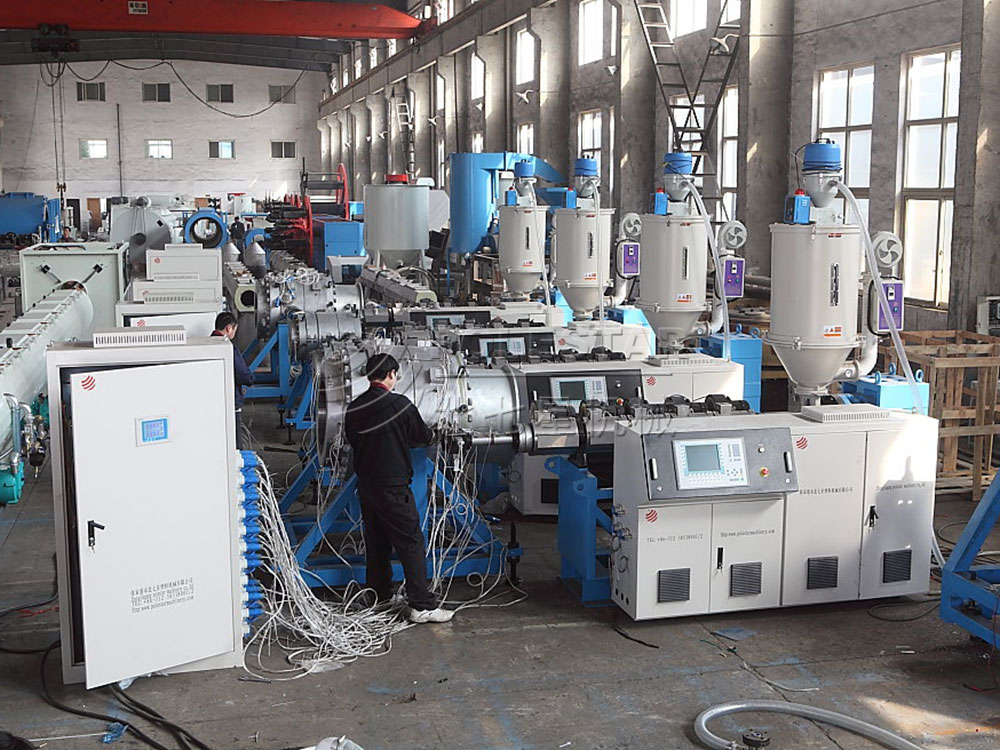

SJ series Single screw extruder
Machine Characteristics
It can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on
Technical Data
| Model | L/D | Capacity(kg/h) | Rotary speed(rpm) | Motor power(KW) | Central height(mm) |
| SJ25 | 25/1 | 5 | 20-120 | 2.2 | 1000 |
| SJ30 | 25/1 | 10 | 20-180 | 5.5 | 1000 |
| SJ45 | 25-33/1 | 80-100 | 20-150 | 7.5-22 | 1000 |
| SJ65 | 25-33/1 | 150-180 | 20-150 | 55 | 1000 |
| SJ75 | 25-33/1 | 300-350 | 20-150 | 110 | 1100 |
| SJ90 | 25-33/1 | 480-550 | 20-120 | 185 | 1000-1100 |
| SJ120 | 25-33/1 | 700-880 | 20-90 | 280 | 1000-1250 |
| SJ150 | 25-33/1 | 1000-1300 | 20-75 | 355 | 1000-1300 |
